The 2100 has been an excellent erosion control tool for road sides and mining.
It is a single bale loader machine that provides solutions for:
- Range feeding
- Bedding
- Odor control on wastewater lagoons
- Bunk feeding
- Erosion control
![](/media/iipasrj0/2100-cover.jpg)
Features
![](/media/gc2k4hlp/semi-mounted.jpg)

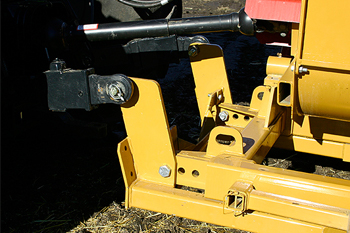

Semi-Mounted
The 2100 Balebuster is semi-mounted, making it easy to maneuver and back into tight places. This semi-mounted unit transfers approximately 55% of the 2100’s operating weight directly to the tractor, keeping the weight off the Balebuster.
![](/media/oyqnvb3n/heavy-duty-loader.jpg)
Heavy Duty Loader
This machine is self-loading, and it only requires one person to operate.
![](/media/41wddble/shredder-chamber.jpg)
Shredder Chamber
The Shredder Chamber has a 3-chain slatted conveyor that provides the needed traction to handle all round bales: hard or soft core. The chamber is 15% larger than previous models, reducing spillage and making hay and straw placement much easier. It processes hay into usable rations, making your hay go farther and reducing your costs.
![](/media/ofvnyfts/heavy-duty-offset-rotors-flails-clearance.jpg)
Heavy Duty Offset Rotors, Flails & Clearance
This unit’s heavy-duty offset rotor, flails, and reduced flair tip clearance work together to throw straw further and process both dry and wet bales.
![](/media/paqonwk0/spreads-straw-up-to-40-feet.jpg)
Spreads Straw up to 40 Feet
As a primary concern for farmers, preventing accelerated soil erosion and minimizing sedimentation, the 2100 Balebuster is the perfect solution for excellent erosion control.
![](/media/30mj32lv/wide-spread-caster-wheels.jpg)
Wide Spread Caster Wheels
The 2100’s strong caster wheels and large 9.5x14 8-ply tires combine to easily navigate over boggy ground and rough terrain. They also provide additional stability and ease of backing.
![](/media/bv5ppunh/easily-adjustable-deflector.jpg)
Easily Adjustable Deflector
This bale processor is equipped with a variable position deflector that is easily adjustable.
Find a Haybuster Dealer
Standard Features
- Tractor Semi-Mounted, for easy maneuvering and positioning of straw.
- Rear caster wheels to support weight of machine and bale.
- Heavy-duty loader for easy bale loading. Just back into bale, hydraulically roll shredder frame which loads the bale.
- Heavy-duty chain conveyor with more durable chain and heavier drive shafts.
- 1000 RPM drive that can throw straw up to 40 feet.
- Easily adjustable deflector for feeding or bedding.
Optional Features
- Stripper channel kits
- Category II/III Quick-Tach Hitch
- Wide Deflector Belt
Specifications
![](/media/ef0hjgvk/2100-specs-horizonatal.jpg)
WEIGHT | |
---|---|
Total | 3,700 lbs. (1,678 kg) |
SHIPPING DIMENSIONS | |
Width | 8 ft. 5 in. (2.6 m) loader & deflector folded. |
Length | 12 ft. 9 in. (3.89 m) |
Length | 8 ft. 5 in. (2.6 m) caster wheels removed. |
Height | 6 ft. 5 in. (1.96 m) loader folded. |
TRANSPORT DIMENSIONS | |
Width | 10 ft. 8 in. (3.25 m) |
Length | 12 ft. 9 in. (3.89 m) |
Height | 6 ft. 5 in. (1.96 m) loader folded |
WORKING DIMENSIONS (WITH BALE) | |
Width | 13 ft. (3.96 m) |
Length | 12 ft. 9 in. (3.89 m) |
Height | 9 ft. 8-3/4 in. (2.97 m) |
CHASSIS FEATURES | |
Hitch | Semi-Mounted, attaches to lower Lift Links of Tractor's 3-PT Hitch |
Tires | (2) 9.5 x 14 - 8-Ply |
Wheels | (2) 6 x 14 - 5 Bolt Drop Center |
Bearings | Tapered roller |
Axle | Caster |
BALE LOADER | |
Type | Hydraulic with mechanical linkage |
Bale Tines | (2) fixed width |
Hydraulic Cylinder | (2) 2-1/2" x 16" (6.35 cm x 40.64 cm) double acting |
BALE CONVEYOR | |
Type | 3 Roller Chains with Bolt-on Cross Slats |
Drive | Hydraulic Motor with Hydraulic Flow Control |
BALE SHREDDER CHAMBER | |
Max. Bale Size | 6 ft. long x 6-1/2 ft. dia. (1.83 m x 1.98 m) |
Max. Bale Weight | 2,000 lbs. (907 kg) |
Rotor Length | 78 in. (1.98 m) |
Rotor Diameter (Flails extended) | 25 in. (63.5 cm) |
Rotor Bearing | Ball, 1-3/4 in. (4.45 cm) |
Number of Flails | 30 |
Flail Type | Heavy Duty Flails, 7/16 in. (11.11 mm) Thick, 3 lbs. (1.36 kg), Heat Treated Spring Steel, Swinging |
Number of Stripper Plates | 1 |
Number of Slug Bars | 5 |
Deflector Shield | 6 Adjustment Positions through 120 degree range |
Max. Horizontal Spread | Straw up to 50 ft. |
OPERATOR CONTROLS | |
Loader | 1 set of Tractor Hydraulic Outlets |
Bale Conveyor | 1 set of Tractor Hydraulic Outlets |
Bale Conveyor Speed | Adjustable Hydraulic Flow Control Valve |
Slug Bar | Shim adjustable |
Deflector Shield Position | Hand Lever with 6 Position Settings through 120 degree range |
REQUIREMENTS FOR OPERATION TRACTOR | |
PTO Horsepower required | 65 to 155 |
Three Point Hitch | CAT II / III |
Min. Hitch Lift Capacity | 4,000 lbs. (1,814 kg) |
PTO Type | 1000 RPM, 1-3/8 in dia Shaft with 21 Splines |
Min. Hydraulic Output | 8 gpm at 1800 psi (30.3 lpm x 12,410.56 kPa) |
Hydraulic Remote Controls | 2 Double-Acting Control Valves with Quick Coupler Outlets |
Tractor Weight | Must be of equal or greater weight than that of a 2100 BALEBUSTER and 1 Bale |
SMV Sign | Standard equipment |
Road Lights | Standard equipment |
