The 710 is part of our CMF series of vertical mixers that cut materials like hay, straw and corn stocks.
They also mix materials like distillers, silage, corn and more.
Features
Mixing Capacity
The CMF-710 has a 710-cu. ft. mixing capacity.
Adjustable Vertical Knives
Adjustable vertical knives for more aggressive cutting.
Observation Windows
The CMP-710 has observation windows on the right and left sides of the machine.
Large 30 Inch by 40 Inch Unloading Door
Large 30 inch by 40 inch unloading door for fast even unloading and cleaning.

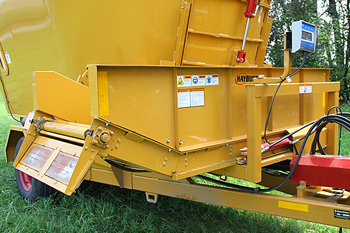

Versatile 36 in. Wide Cross and Unloading Conveyor
The CMF-710 equipped with a 36-inch-wide hydraulic chain/slat unloading conveyor featuring:
- cross conveyor only with right- or left-hand drives
- cross conveyor with spouts or endgates. Magnets are available for the spouts.
- cross conveyor with hydraulic conveyor extension. Available in right hand, left hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at one time. Spouts and optional magnets are also available.
76” Heavy-Duty Twin Augers w/ 7 Knives per Auger
Heavy-duty 76-inch twin screw augers, with self-sharpening serrated knives, driven by 2 HD USA gearboxes that are covered by a two-year warranty.
Digi-Star 4pt Scale with Choice of Optional Digi-Star Monitors
A CMF-710 equipped with the standard Digi-Star 4pt. scale and EZ 3500 V monitor. All other Digi-Star monitors and scale heads are available. The Digi-Star system is powered by a standard onboard 12-volt battery. Digi-Star feeding programs are also available.
Free Motion Clutches on Driveline
Free motion clutches on driveline protect the heavy duty gearboxes. Gearboxes come with a two-year warranty. The optional two-speed gearbox is used for loaded startups and heavy rations.
4-Point Scale
4-point scale for accurate weighing, with reduced scale bounce during loading and feeding.
Oscillating Heavy-Duty Axles
Oscillating heavy-duty axles with 4) 315/80 R 22.5 20 ply rated tires provide even weight distribution on uneven and frozen ground.
Heavy Duty Frame
The CMF-710 is built with a heavy-duty 6” x 9” x ¼” steel tube frame for strength and longevity.
Optional Magnets on Chutes
Discharge magnets on the discharge chutes removes metal, such as bale wire, from feed, providing the highest quality feed available.
Dogleg Conveyor
Optional Dogleg Conveyor Available.
CV PTO or Optional 2-Speed Gear Box
The CMF-710 comes equipped with either a heavy-duty constant velocity PTO or an optional 2-speed gear box. The two speed gearbox is used for loaded startups and heavy rotations.
Find a Haybuster Dealer
Standard Features
MIXING CAPACITY: The CMF-710 has a 710 cu. ft. mixing capacity with a tare weight of 18,340 lbs.
UNLOADING DOOR: Large 24” x 42” unloading door for fast, even unloading and cleaning.
AUGERS: Heavy-duty 76” screw augers with self-sharpening serrated knives, driven by 2 HD USA gearboxes.
OSCILLATING AXLES: Oscillating Heavy Duty Axles with 4) 315/80 R 22.5 20-ply rated tires provide even weight distribution on uneven ground.
HEAVY-DUTY FRAME: The CMF-710 is built with a heavy-duty 6” x 9” x ¼” steel tube frame for strength and longevity
CV PTO OR OPTIONAL 2-SPEED GEAR BOX: The CMF-710 comes equipped with either a heavy-duty constant velocity 1000 rpm PTO or an optional 2-speed gearbox. The 2-speed gearbox is used for loaded startups and heavy rations.
Optional Features
Unloading Options
Cross Conveyor only with right- or left-hand drives.
Cross Conveyor with spouts or endgates. Magnets are available for the spouts.
Cross Conveyor with hydraulic conveyor extension. Available in right-hand, left-hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at a time. Spouts and optional magnets are also available.
Dogleg style conveyor also available
Magnets on discharge spouts
Magnets on the spouts remove ferrous metal, such as bale wire, from feed, providing the highest quality feed available.
Rear discharge door
The optional rear discharge door provides an additional means of discharging feed.
2-Speed Gear Box
The 2-speed gear box is used for heavy starts after transporting heavy rations to protect the tractor PTO and mixers drive train.
Digi-Star Scale
Choose from any Digi-Star scale indicator Also available are optional Digi-Star Feed Management Programs
Specifications
| WEIGHT | |
|---|---|
| Total | 13,660 lbs. (6,196.07 kg) |
| Tongue Weight | 1,180 lbs. (535.24 kg) |
| TRANSPORT DIMENSIONS (Fully raised conveyor) | |
| Width | 10' 1-1/2" (3.086 m) |
| Length | 22' 2-11/16" (6.774 m) |
| Height | 10' 2-3/4" (3.118 m) |
| WORKING DIMENSIONS | |
| Width | Between 10'-2" and 12' Depending on Conveyor |
| Loading Height With Extensions | 10' 2-3/4" (3.118 m) |
| CHASSIS FEATURES | |
| Towing Arrangement | Clevis Type Hitch |
| Jack Capacity | 7,000 lbs (3175.1 kg) |
| Jack Travel | 10 in. (25.4 cm) |
| Tires | (4) 14 L-16.1-12 ply |
| Wheels | (4) 8 Hole |
| Axle | Oscillating |
| Bearings | Tapered Roller |
| Extensions | 12" Rubber |
| CAPACITIES | |
| Mixing capacity | 710 cu. ft. (20.1 cu. m) |
| Gross Weight Capacity | 39,400 lbs (17,871.5 kg) |
| Tare Weight - TMR | 18,340 lbs (8,314.88 kg) |
| AUGERS | |
| Number | 2 |
| Diameter | 76" (193 cm) |
| Flighting Thickness | 5/8 in. (1.59 cm) |
| Number / Thickness Knives | 14-5/16" (0.794 cm) |
| DRIVELINE AND GEAR BOXES | |
| Drive Line | Constant velocity, 1000 rpm PTO, available in 1-3/4” (4.45 cm) or 1-3/8” (3.49 cm) |
| Clutch | (2) Free motion automatic clutches |
| Gearboxes | 2- HD gearboxes with 2 year warranty |
| UNLOADING CONVEYOR | |
| Type | 36 in. (91.44 cm) Chain With Hydraulic Orbital Motors |
| Discharge Options | Left, right, both |
| Dogleg Style Conveyor Optional | 30” (76.2 cm) |
| MISCELANEOUS | |
| Door Opening | 30" (76.2 cm) x 40" (101.6 cm) |
| Floor Thickness | 5/8 in. (1.59 cm) |
| Side Wall Thickness | 1/4 in. (0.635 cm) |
| Scale | Digi-Star 4 point scale with optional monitor |
| Observation Windows | 2 |
| REQUIREMENT FOR OPERATION - TRACTOR | |
| PTO Horsepower Required | 125 HP minimum |
| PTO Type | 1000 RPM, 1-3/8” Dia. with 21 Spline |
| Min. Tractor Hydraulic Output | 8 gpm at 1500 psi (30.3 lpm X 10,345 kPa) |
| SMV Sign and Road Lights | Standard Equipment |
| Electrical | 12 VDC (battery included) |
