Features
![](/media/rummwkgb/mixing-capacity.jpg)

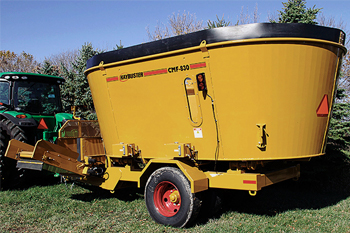

Mixing Capacity
The CMF-830 has a 830 cu. ft. mixing capacity with the standard extension.
![](/media/fyenohpm/vertical-knives.jpg)

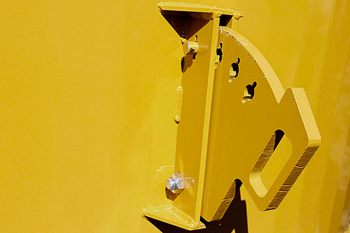

Vertical Knives
Adjustable vertical knives for more aggressive cutting.
![](/media/jgzbmxmu/observation-windows.jpg)

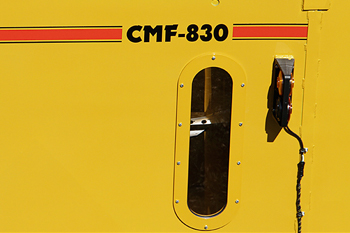

Observation Windows
The CMF-830 has observation windows on the right and left sides of the machine.
![](/media/or0iwudx/large-24-x-24-unloading-door.jpg)

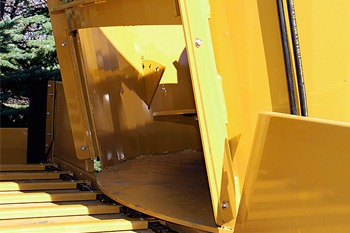

Large 24” x 24” Unloading Door
Large 24” x 24” unloading door for fast and even unloading and cleaning.
![](/media/couh4n2h/versatile-36-wide-cross-and-unloading-conveyor.jpg)

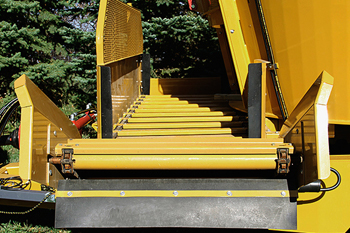

Versatile 36” Wide Cross and Unloading Conveyor
The CMF-830 is equipped with a 36” wide hydraulic chain/slat unloading conveyor featuring:
- Cross conveyor only with right- or left-hand drives
- Cross conveyor with spouts or endgates. Magnets are available for the spouts.
- Cross conveyor with hydraulic conveyor extension. Available in right-hand, left-hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at one time. Spouts and optional magnets are also available.
- 18-5/8” to 47” discharge height.
![](/media/5zjlth05/88-heavy-duty-twin-augers-with-7-knives-per-auger.jpg)

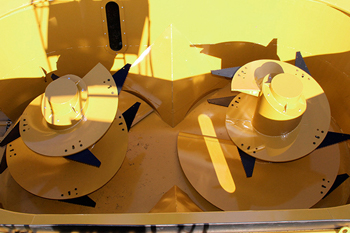

88” Heavy-Duty Twin Augers with 7 Knives Per Auger
Heavy-duty 88” twin screw augers with self-sharpening serrated knives are driven by 2 HD USA gearboxes that are covered by a two-year warranty.
![](/media/qzzhjx3t/digi-star-4pt-scale-with-choice-of-optional-digi-star-monitors.jpg)

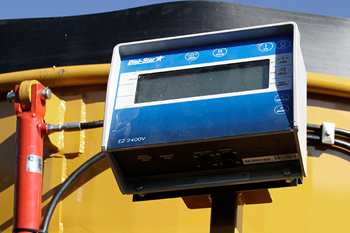

Digi-Star 4 pt. Scale with Choice of Optional Digi-Star Monitors
The CMF-830 is equipped with a standard Digi-Star 4 pt. scale and EZ 3500 V monitor. All other Digi-Star monitors and scale heads are available. The Digi-Star system is powered by a standard onboard 12 volt battery. Digi-Star feeding programs are also available.
![](/media/xfhlwx3i/free-motion-clutches-on-driveline.jpg)
Free Motion Clutches on Driveline
Free motion clutches on driveline protect the heavy-duty gearboxes. Gearboxes come with a two-year warranty. The optional s-speed gearbox is used for loaded startups and heavy rations.
![](/media/bqnl5bu0/4-point-scale.jpg)

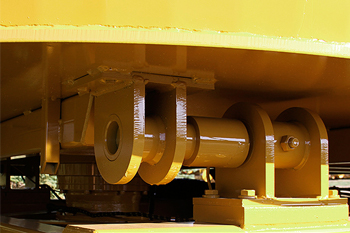

4 Point Scale
4 point scale for accurate weighing with reduced scale bounce during loading and feeding.
![](/media/w31mr4ye/oscillating-heavy-duty-axles.jpg)

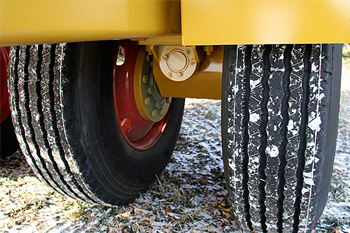

Oscillating Heavy-Duty Axles
Oscillating heavy-duty axles with four 315/80 R 22.5 20 ply rated tires provide even weight distribution on uneven and frozen ground.
![](/media/bvjl14zj/heavy-duty-frame.jpg)

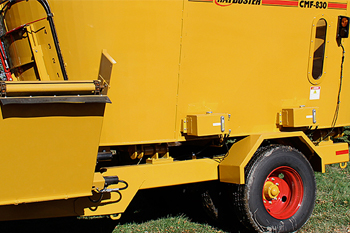

Heavy-Duty Frame
The CMF-830 is built with a heavy-duty 6” x 9” x ¼” steel tube frame for strength and longevity.
![](/media/22ebq3nx/optional-magnets-on-chutes.jpg)

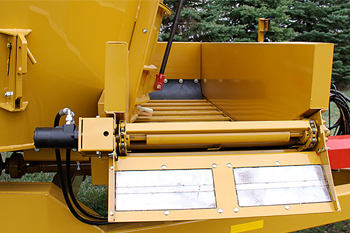

Optional Magnets on Chutes
Discharge magnets on the discharge chutes removes metal, such as bale wire, from feed providing the highest quality feed available.
![](/media/bpydmcgs/dogleg-conveyor.jpg)

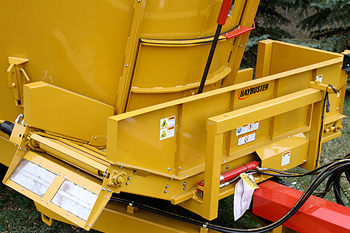

Dogleg Conveyor
Optional dogleg conveyor available.
![](/media/kpel4dif/cv-pto-or-optional-2-speed-gearbox.jpg)

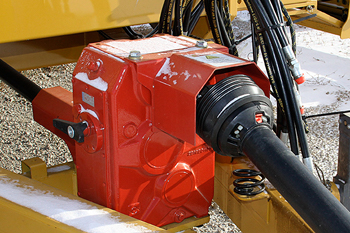

CV PTO or Optional 2-Speed Gearbox
The CMF-830 comes equipped with either a heavy-duty constant velocity PTO or an optional 2-speed gearbox. The 2-speed gearbox is used for loaded startups and heavy rations.
Find a Haybuster Dealer
Standard Features
Mixing Capacity: The CMF-830 has an 830 cu. ft. mixing capacity with a tare weight of 21,500 lbs.
Unloading Door: Large 24” x 42” unloading door for fast, even unloading and clean out.
Augers: Heavy-duty 88” screw augers with self-sharpening serrated knives, driven by 2 HD USA gearboxes.
Oscillating Axles: Oscillating heavy-duty axles with four 315/80 R 22.5 20-ply rated tires provide even weight distribution on uneven or frozen ground.
Heavy-Duty Frame: The CMF-830 is built with a heavy-duty 6” x 9” x ¼” steel tube frame for strength and durability.
CV PTO or Optional 2-Speed Gearbox: The CMF-830 comes equipped with either a heavy-duty constant velocity 1000 RPM PTO or an optional 2-speed gearbox. The 2-speed gearbox is used for loaded startups and heavy rations.
Optional Features
Unloading Options:
Cross Conveyor only with right- or left-hand drives.
Cross Conveyor with spouts or endgates. Magnets are available for the spouts.
Cross Conveyor with hydraulic conveyor extension. Available in right-hand, left-hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at a time. Spouts and optional magnets are also available.
Dogleg Style Conveyor Also Available
Magnets on Discharge Spouts: Magnets on the spouts remove ferrous metal, such as bale wire, from feed providing the highest quality feed available.
Rear Discharge Door: The optional rear discharge door provides an additional means of discharging feed.
2-Speed Gearbox: The 2-speed gearbox is used for heavy starts after transporting heavy rations to protect the tractor PTO and mixer's drive train.
Digi-Star Scale: Choose from any Digi-Star scale indicator. Also available are optional Digi-Star Feed Management Programs.
Specifications
WEIGHT | |
---|---|
Total | 17,900 lbs. (8,119.3 kg) |
Tongue Weight | 2,100 lbs. (952.5 kg) |

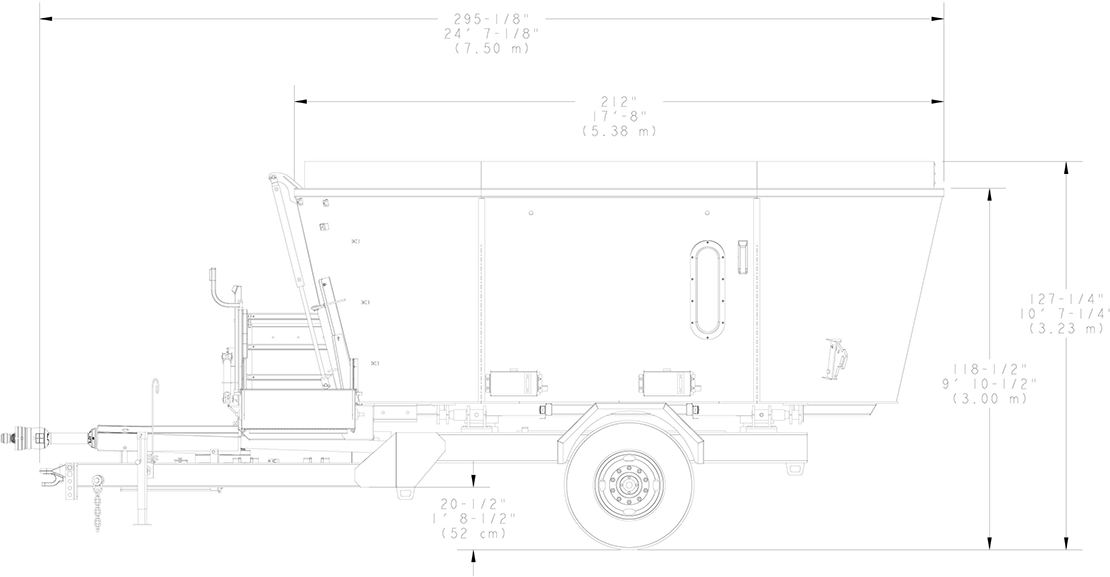

TRANSPORT DIMENSIONS | |
Width | 10' 2" (3.1 m) |
Length | 24' 8" (7.5 m) |
Height | 10' 8" (3.3 m) |
WORKING DIMENSIONS | |
Loading Height with Extensions | 10' 8" (3.3 m) |
Width | Between 10'-2" and 12' Depending on Conveyor |
CHASSIS FEATURES | |
Towing Arrangement | Clevis Type Hitch |
Jack Capacity | 7,000 lbs. (3,175.1 kg) |
Jack Travel | 10 in. (25.4 cm) |
Tires | (4) 315/80R 22.5 20 ply |
Wheels | (4) 22.5 x 9 - 10 hole |
Axle | Oscillating |
Bearings | Tapered Roller |
Extensions | 12" Rubber |
CAPACITIES | |
Mixing capacity | 830 cu. ft. (23.5 cu. m) |
Gross Weight Capacity | 39,400 lbs. (17,871.5 kg) |
Tare Weight - TMR | 21,500 lbs. (9,752.24 kg) |
AUGERS | |
Number | 2 |
Diameter | 88 in. (223.52 cm) |
Flighting Thickness | 5/8 in. (1.59 cm) |
Number / Thickness Knives | 14-1/4 in (.635 cm) self-sharpening |
DRIVELINE AND GEARBOXES | |
Drive Line | 1 ¾” (4.45 cm) Constant velocity 1000 RPM PTO shaft Optional two-speed gearbox with 1 ¾” 1000 RPM PTO for loaded startups |
Clutch | Free motion automatic clutches (2) |
Gearboxes | 2- HD gearboxes with 2 year warranty |
UNLOADING CONVEYOR | |
Type | 36 in. (91.44 cm) Chain With Hydraulic Orbital Motors |
Discharge Height | 26 5/8 in. (67.63 cm) to 55 in. (139.7 cm) |
Discharge Options | Left, right, both |
MISCELANEOUS | |
Door Opening | 24 in. (60.96 cm) x 42 in. (106.68 cm) |
Floor Thickness | 5/8 in. (1.59 cm) |
Side Wall Thickness | 1/4 in. (0.635 cm) |
Scale | Digi-Star 4 point scale with optional monitor |
Observation Windows | 2 |
REQUIREMENT FOR OPERATION | |
PTO Horsepower Required | 150 HP minimum |
PTO Type | 1000 RPM, 1 3/4" dia PTO Shaft with 20 splines |
Min. Tractor Hydraulic Output | 8 gpm at 1500 psi (30.3 lpm X 10,345 kPa) |
SMV Sign and Road Lights | Standard Equipment |
Electrical | 12 VDC (battery included) |
